The Artisan Architectural 225 Door is a 46mm pocket-glazed commercial door panel capable of hinge door configurations and has been designed with flexibility, performance, and ease of assembly in mind. The Artisan Architectural 225 Door builds on the trusted and reliable 200 and 275 Series Doors, suiting a wide range of applications from architectural entry doors to trialmmercial shopfronts.

This door can be fitted with either single or double-glazed units and has the option of standard and wide stiles. It is also compatible with a vast range of commercial and architectural locks and furniture as well as the full range of Capral framing systems.

Features and Benefits:

  • Ultra high-performance design
  • Suited to almost any commercial or architectural application
  • Extended product limitations for large configurations
  • Tested to cyclonic and BAL40 requirements
  • High performance roller hardware
  • Standard and multi-stack configurations
  • Internal or external sliding configurations
  • Can be internally or externally screened
  • Compatible with a wide range of framing suites
  • Single Glazed
  • Double Glazed
  • Wind & Water Rated
  • Acoustic Rated
  • WERS
  • Bushfire Rated
  • Flyscreen Option
  • Cyclonic Rated
  • Air Circulation
  • Passive Venting
  • Australian Standards
  • Drain Solutions
  • Declare Label Certified
  • Lower-carbon Aluminium

ProVista Sashless Double Hung Window

The ProVista Sashless Double Hung Window offers unobstructed views whether the window is open or closed. The two panes of glass slide smoothly and effortlessly past each other with a minimalist design.

It creates a clean and modern aesthetic feel while also providing maximum ventilation.

Key Features

  • 2, 3, 4 Pane configurations
  • New build and retrofit compatible
  • Snap in jambs providing concealed fixings and pulleys
  • Vent lock and key locking options
  • Ease of assembly
  • Excellent water, bushfire, acoustic, and energy performance

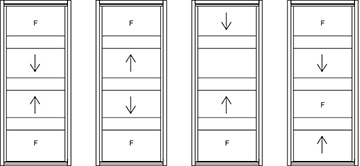

Sashless Window Typical Configurations




Additional information

Compatible with

AGS Commercial Range
McArthur Evo Centre Pocket Framing

Door Construction

Stile & Rail

Frame Dimensions (D & H)

Option 1 Sill: 100 & 150 x 44 STD
Option 2 Sill: 100 & 150 x 50 STD
Option 3 Sill: 100 & 150 x 80 HP

Maximum Product Performance

SLS (Pa): up to 6000
ULS (Pa): up to 10500
WATER(Pa) Open In: up to 300

Maximum Sound Rating

Rw(C;Ctr): 36(-1;-2)

Standard Door Size (mm)

2040 x 820 x 46
2040 x 870 x 46
2040 x 920 x 46
2040 x 1200 x 46
Custom size

Custom/Special Size (mm)

Maximum Recommended Sash Sizes: 3000 x 1200 x 46
Custom sizes are available on request

Bushfire Attack Level

BAL 40: Very high
