Steel Frame Design Code Note:
- N = to suit 35 mm non fire rated door
- NM = to suit 40 mm non fire rated door
- Throat size is denoted by the number in the product code. For example N114 = 114 mm throat size
- SPECIAL NOTE: N114 x 824, N114 x 924 frames supplied with stud clips, brick ties and retail packaging

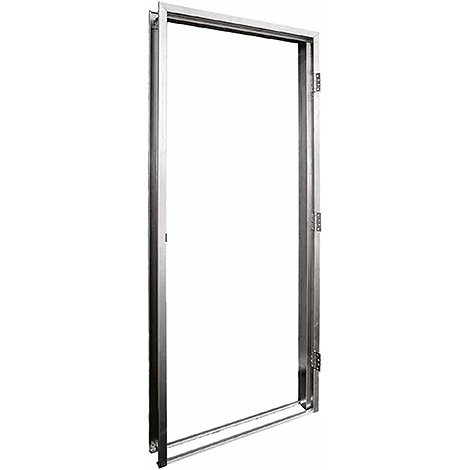

Hume Doors & Timber now manufacture a complete range of steel door frames to suit every application for the commercial and residential market. We will gladly accept your enquiry no matter how unusual or straight forward.
- Includes 3 hinges (Requiraed to meet door guarantee for solid doors)
- Hinges screw fixed to frame to allow removal if required for easy door hanging
- Zinc finish, ready for priming or painting

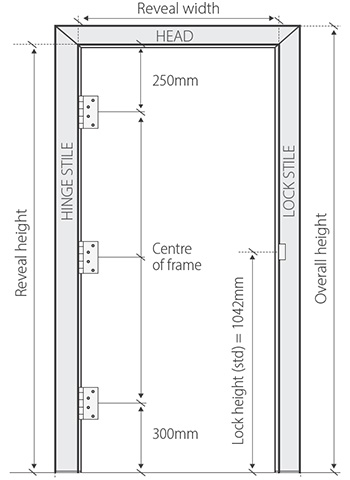

Steel Frame Standard Hinge & Lock Positions (Non Rated Frames)
Door Handlings
Left hand
Right hand

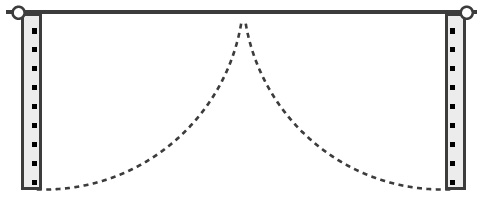

Double doors
Profile Details

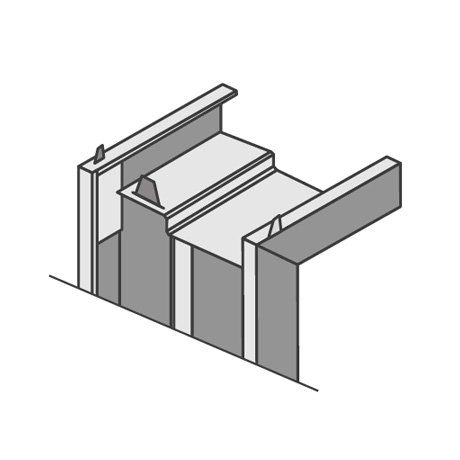

Corner detail

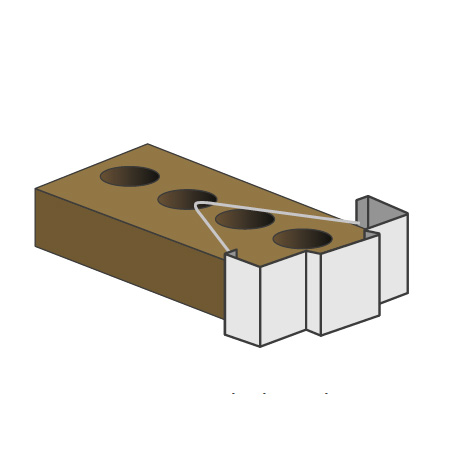

Jamb brick

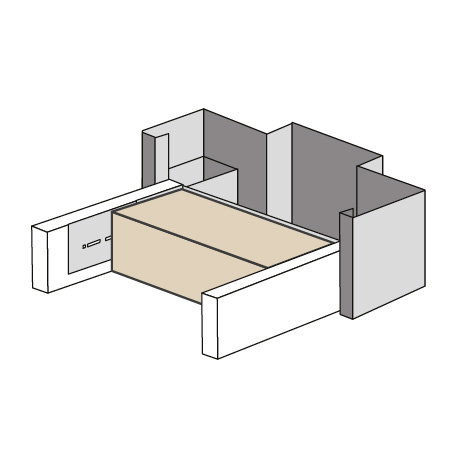

Jamb gyprock
Jamb steel

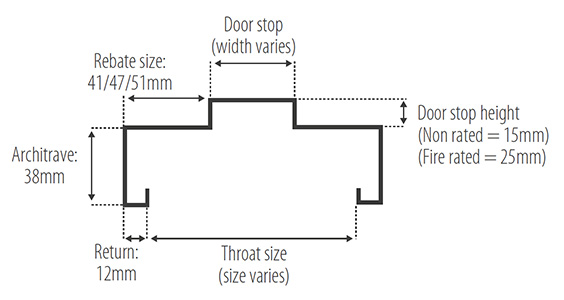

Steel Frame Profile
Additional Extras
Strap fix
Tube fix
Stud clips
