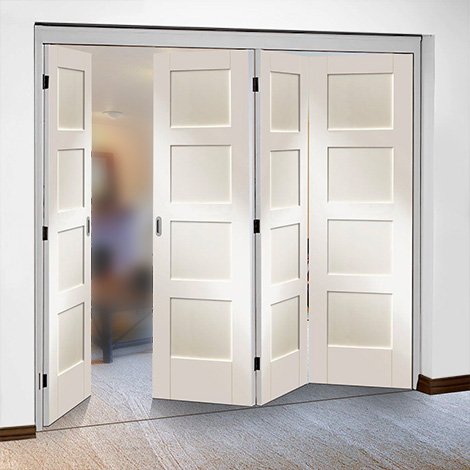

MULTI-FOLD – INTERIOR FOLDING SYSTEMS

BACK

Back to Windsor Solid Timber range.

Multi-Fold Doors

Space saving
Smooth & Quiet
A wide range of styles and sizes to choose from

Increase a rooms area by featuring a Hume interior folding system. It will turn two rooms into one. With a wide range of styles available Hume can cater to any opening.

Standard size for all Multi-Folds is 2015 x 355/380/405 x 35 mm. Multi-Folds have same design options as Bi-folds.

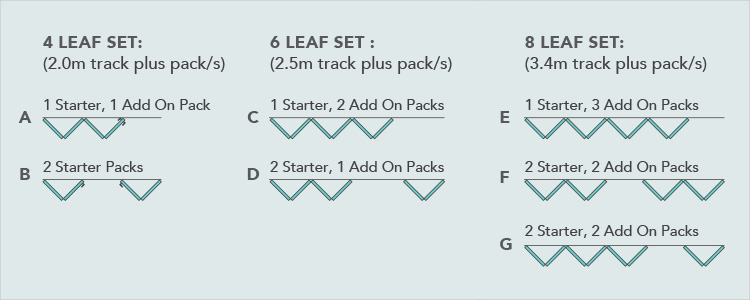

Multi-Fold Orientation

Multi-Folds Orientation

Flush

Accent / Sorrento/ Strata

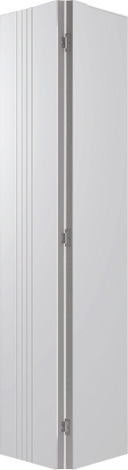

MF HAG9

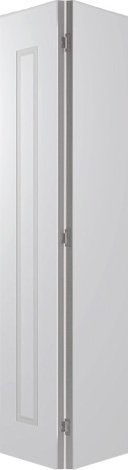

MF SOR1

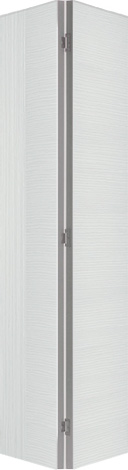

MF HST1

Humecraft

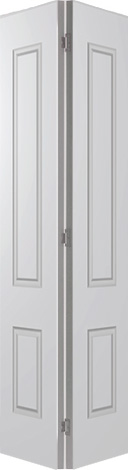

MF 29

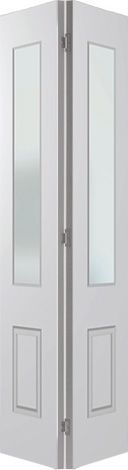

MF 30

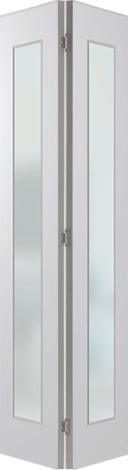

MF 35

Moulded Panel Smooth

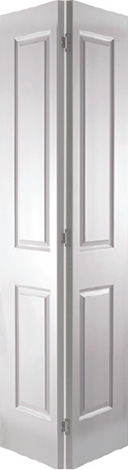

ASCOT (MF27)

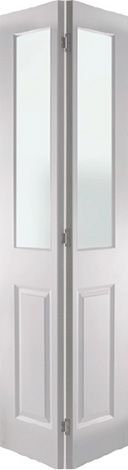

ASCOT-G (MF28)

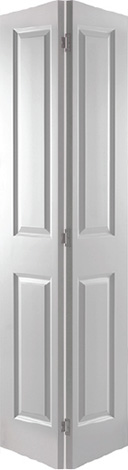

HAYMAN (MF6)

Moulded Panel Woodgrain

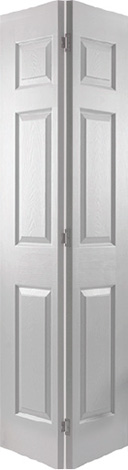

Caprice MF34

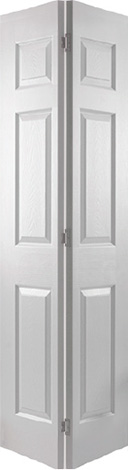

Pacific MF15

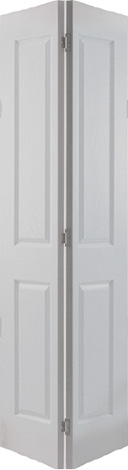

Oakfield MF18

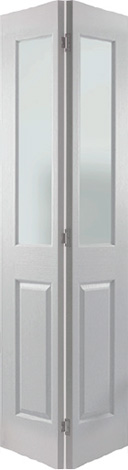

Oakfield-G MF19

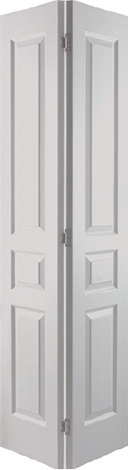

Denmark MF26

Glazed Multi-Folds

Multi-Fold Range	Design Code	Unglazed	Clear (G1)	Cathedral (G2)	Grey Tint (G2)	Translucent (G2)	Frost Coloured Design (G3)	Frost Panama (G4)
Moulded Panel Woodgrain	Oakfield-G (MF19)	✔	✔	✔	✔	✔	✔	✔
Moulded Panel Smooth	ASCOT-G (MF28)	✔	✔	✔	✔	✔	✔	✔
Humecraft (PMDF)	*MF30	✔	✔	✔	✔	(G3) ✔	(G2) ✔	(G3) ✔
Humecraft (PMDF)	*MF35	✔	✔	✔	✔	(G3) ✔

*MF30 and MF35 have different G codes for glass
Multi-fold leaves, track and fittings should be ordered together, for system operational purposes
Multi-fold leaves supplied as single door leaves

Non Glazed Multi-Folds

Multi-Fold Range	Design Code

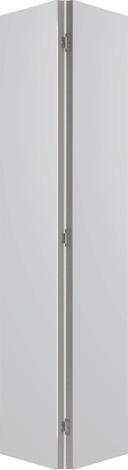

Flush	MF1 PCMDF

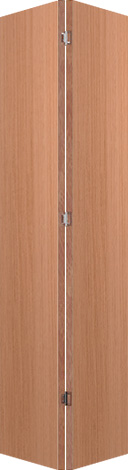

Flush	MF1 SPM
Accent	*All
Moulded Panel Woodgrain	Pacific (MF15)
	Oakfield (MF18)
	Denmark (MF26)
	Caprice (MF34)
Moulded Panel Smooth	Ascot (MF 27)
Moulded Panel Smooth	Hayman (MF 6)
Sorrento	*All
Humecraft (PCMDF)	MF 29
Strata	MF HST1
	MF HST4
	MF HST5
	MF HST1M
	MF HST4M

*All designs in the range are available as Multi-Folds

Standard Glass Options

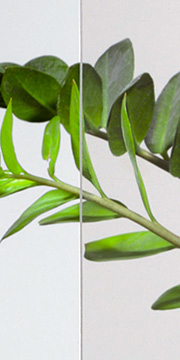

Clear (G1)

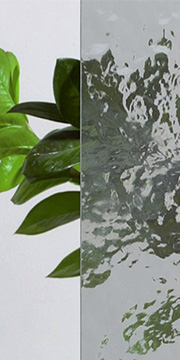

Cathedral (G2)

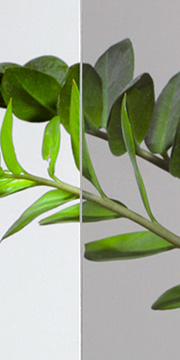

Grey Tint (G2)

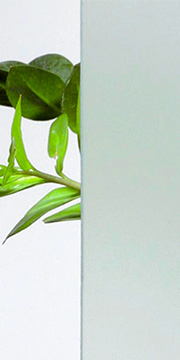

Translucent (G2)

Frost Coloured Design (G3) & Panama Glass (G4)

Frost Coloured Option - Frosted-Kookaburra-Jewel

1

Frost Coloured Option - Frosted-Black-Orchid

2

Frost Coloured Option - Frosted-Wysteria

3

Frost Coloured Option - Kookaburra-Green-Leaves

4

Frost Coloured Option - Frosted Rose Bud

5

6

1	Frosted Kookaburra Jewel (G3)
2	Frosted Black Orchid (G3)
3	Frosted Wysteria (G3)
4	Kookaburra Green Leaves (G3)
5	Frosted Rose Bud (G3)
6	Panama (G4)

Opening & Multi-Fold sizes

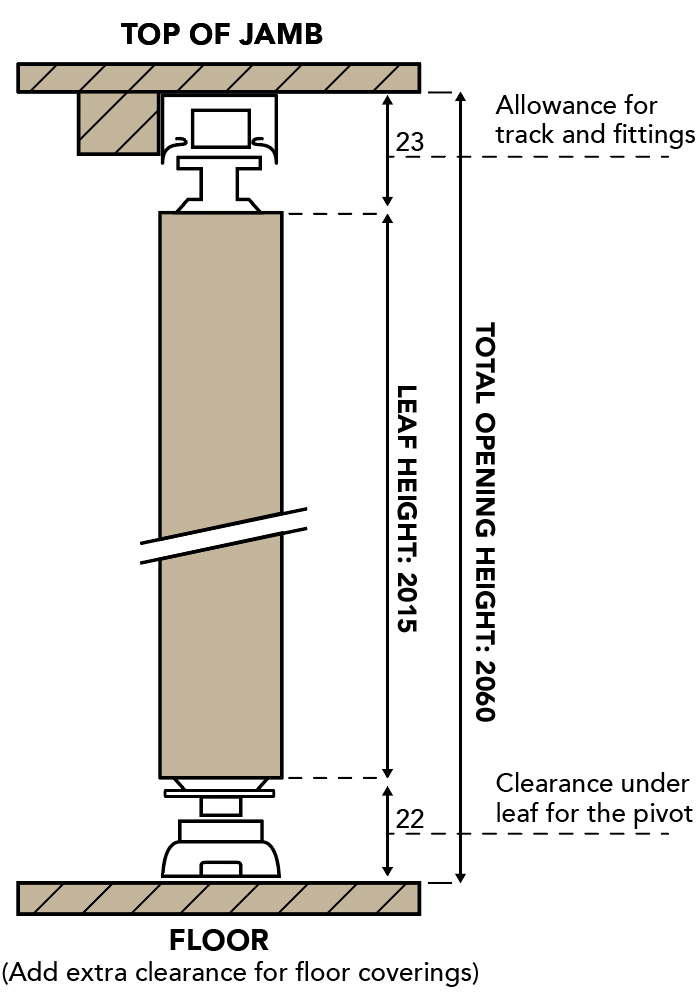

Opening & Bi-Fold sizes

Standard leaf sizes are 2015 x 355/380/405 mm
Standard opening sizes are 2075 mm x width to suit even number of leaves

To Calculate Opening Height For Multi-fold Sets
Leaf Height	2015 mm
Allowance for track and fittings and under door clearance	60 mm
Total Height for standard opening	2075 mm

To Calculate Opening Width For Multi-fold Sets
(This example uses a four door application using 405mm leaves)
Leaf width x number of leaves (eg 405 mm leaf x 4)	1620 mm
Add 2 mm between each leaf (eg 4 leaves)	6 mm
Allow 6 mm clearance at each jamb	12 mm
Total width	1638 mm

Additional Extra Parts

Cancellations or alterations for made to order doors will only be accepted on the day of ordering.

Multi-Fold Track & Fittings	Multi-Fold Parts
4 Leaf Set	2.0 m track only – suits 4 leaf Multi-Fold
6 Leaf Set	2.5 m track only – suits 6 leaf Multi-Fold
8 Leaf Set	3.4 m track only – suits 8 leaf Multi-Fold
	Starter pack
	Add on pack

Additional information

Standard Door Size (mm)	2015 x 355 x 35 2015 x 380 x 35 2015 x 405 x 35 Custom size
Custom/Special Size (mm)	Custom sizes are available on request
