PIVOT FRAMES

MerantiMeranti
Clear
Make a bold statement and increase your homes street appeal with a Hume Pivot System. This assembled entry frame incorporates a heavy-duty pivot with quality fittings that allow the door to be adjusted during installation. Everything you need to make your grand entrance, perimeter seals included.

  • Perfect for Large Doors

    Heavy-duty pivot fittings to suit any oversized door from our extensive range of large doors

  • Optional glazed sidelite/s or hilite
DOORS NOT INCLUDED
  • Allow for up to 1200 wide door
  • Choose from any oversize door in our entrance range
  • Door cost is additional
  • We recommend ordering door and frame together to ensure perfect fit

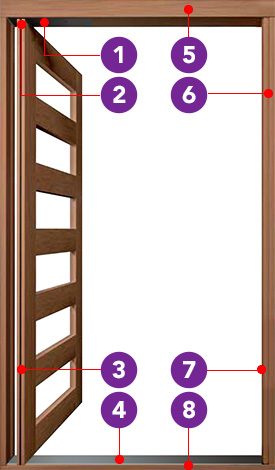

Pivot Frames

1 Concealed Hydraulic Self Closer Concealed Hydraulic Self Closer — Adjustable closing speed control and soft-close allow for safe closing speeds and no slamming of your door. Hold open function at 90 degrees to create a generous entrance.
2 Door Adjustment Hole — Easily adjust your pivot without removing the door, so it is plumb and square.
3 Full Perimeter Seal — Pivot systems have a full perimeter seal which improves energy efficiency and reduces noise.
4 Bottom Seal — A sleek aluminium bottom seal, designed with energy efficiency in mind.
5 Head — Made of premium timber and designed to incorporate the pivot operating system.
6 Factory Assembled Frame — Fully assembled and packaged ready for your home. Simply install and enjoy.
7 Stop Bead — Fitted with perimeter seal, improves energy efficiency.
8 Bottom Sill — Solid timber sill looks sleek & elegant due to a top-mounted pivot mechanism.

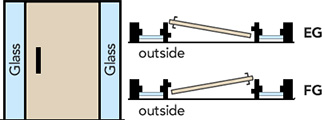

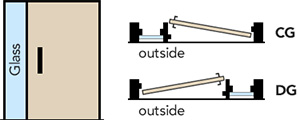

Handing of Pivot Frame

Frame Handling Pivot 1
Frame Handling Pivot 2
Frame Handling Pivot 3

Additional information

Entrance System

Hume Pivot System

Height (mm)

2040, 2400

Width (mm)

1100, 720, 770, 820, 920

Thickness (mm)

40
