WEATHERGUARD FRAMES

MerantiMeranti
Primed PinePrimed Pine
NoneNone
5 mm Toughened Clear5 mm Toughened Clear
Clear
    Reset options

Premium Energy Effcient Entry Frames

Fully assembled, factory fitted hinges and packaged ready for your home. Our frames have been designed to suit most openings.

Factory Fitted Hinges

Frame supplied with hinges

DOORS NOT INCLUDED
  • Door cost is additional
  • Choose from any door in our entrance range
  • Order door and frame together to ensure perfect fit (Recommended)
  • Door is supplied with machine cut outs for hinges when ordered with frame

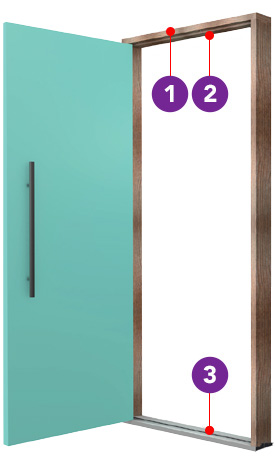

Meranti Weatherguard Frames

1 Timber Jambs & Head — Made of premium timber and designed to suit Australian conditions. Choose from primed pine, meranti or merbau to best suit your situation and door choice.
2 Perimeter Seals for Energy Efficiency — Weatherguard systems have a full perimeter seal which improves energy efficiency and reduces noise.
3 Self draining Aluminium Sill Self-draining Aluminium Sill — A sleek & durable anodised aluminium bottom sill, designed to improve moisture control, energy efficiency and helps to reduce noise. A tread pattern on sill reduces slip.

Rebated Joint

Rebated

For pairs of doors to eliminate draughts, noise, etc. Reduces the width of a pair of doors by 12mm.

Mushroom Top Joint

Mushroom Top

Mushroom stop is an alternative to rebated doors for pairs of doors to eliminate draughts, noise etc. Increases the width of a pair of doors by 12mm.


Handing of Weatherguard Entry Frame

Frame Handling Standard 1

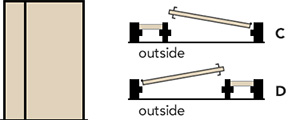

Frame Handling Standard 2
Frame Handling Standard 3
Frame Handling Standard 4

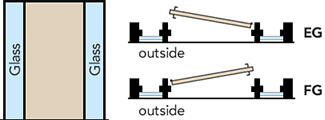

Frame Handling Standard 5

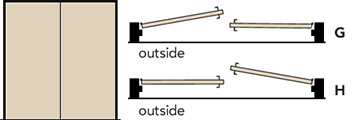

Frame Handling Standard 6
Weatherguard Entry Assembled Frames
DESIGN CODE Frame Suits (Door not included) Unit Size (+/- 5 mm) Frame Depth & Thickness Pine/Meranti Assembled 5 mm Toughened Clear Glass Additional
WG A/B 1 x door (2040 x 820) 2100 x 887 140 x 40
2100 x 887 160 x 40
1 x door (2100 x 1200) 2100 x 1267 140 x 40
2100 x 1267 160 x 40
WG C/D 1 x door (2040 x 820)
1 x sidelite (2040 x 400)
2100 x 1317 140 x 40
2100 x 1317 160 x 40
WG CG/DG 1 x door (2040 x 820)
1 x glass sidelite 5 mm toughened clear
2100 x 1210 140 x 40
2100 x 1210 160 x 40
2100 x 1310 140 x 40
2100 x 1310 160 x 40
2100 x 1410 140 x 40
2100 x 1410 160 x 40
2100 x 1510 140 x 40
2100 x 1510 160 x 40
WG E/F 1 x door (2040 x 820)
1 x sidelite (2040 x 400)
2100 x 1748 140 x 40
2100 x 1748 160 x 40
WG EG/FG 1 x door (2040 x 820)
2 x glass sidelite 5 mm toughened clear
2100 x 1450 140 x 40
2100 x 1450 160 x 40
2100 x 1550 140 x 40
2100 x 1550 160 x 40
2100 x 1650 140 x 40
2100 x 1650 160 x 40
2100 x 1750 140 x 40
2100 x 1750 160 x 40
WG G/H 2 x rebated door (2040 x 820) 2100 x 887 140 x 40
2100 x 887 160 x 40
2 x door (2040 x 820)
1 x Mushroom Stop / T-Bar
2100 x 1267 140 x 40
2100 x 1267 160 x 40

Additional information

Custom Size (mm)

Custom sizes are available on request

Bushfire Attack Level

BAL 12.5:Low (Meranti only)
